Full retention separators treat the full flow that can be delivered by a drainage system, which is normally equivalent to the flow generated by a rainfall intensity of 65mm/hr. Full retention separators are used where there is a risk of regular contamination with oil and a foreseeable risk of significant spillages, eg vehicle maintenance areas and retail fuel forecourts. All full retention separators have an automatic closure device (ACD) fitted as standard. Compulsory for all PPG3 compliant full retention separators, the ACD prevents accumulated pollutants flowing through the unit when maximum storage level is reached.
Process and Performance

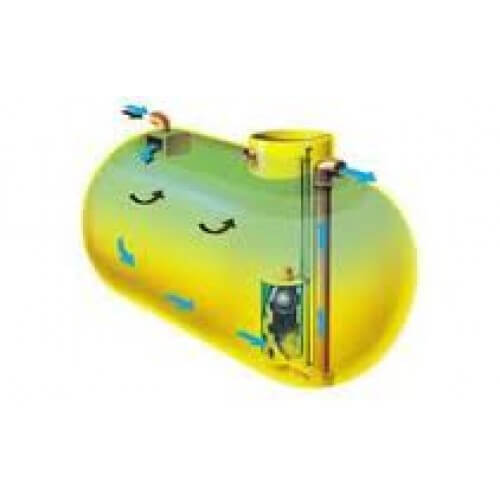

Contaminated water enters the separator and the liquid is retained for a sufficient period to ensure that the lighter than water pollutants, such as oils and petrol, separate and rise to the surface of the water and are retained within the separator. Decontaminated water is discharged. Retained oil must be emptied from the separator once the level of oil is reached, or the oil level alarm is activated and the closure device operated.
Separator waste is a “special waste” and should be removed from the separator under the terms of The Waste Management Code of Practice.
Features and Benefits
- All surface water treated
- Available in class 1 and 2
- ACD fitted as standard
Environment Agency PPG3 Guidelines stipulate that all separators must be fitted with a robust system to provide an audible and visual alarm if the oil level becomes too high. We strongly recommend that you purchase the High Oil Level Alarm alongside this item, and it will be delivered with the separator ready to wire in.
Alarm options include the Darcy indoor, Darcy outdoor, Darcy battery-powered GSM & Darcy solar oil alarms.
- Sites with high risk of oil contamination
- Fuel storage depots
- Refuelling facilities
- Petrol forecourts
- Vehicle maintenance areas/workshops
Area Drained (m²): 222
Silt Capacity (litres): 400
Oil Storage Capacity (litres): 40
Length including silt (mm): 2319
Diameter (mm): 1026
Height (mm): 1655
Access Shaft (mm): 600
Pipe size options available: 100mm or 150mm
