The Conder SAF Package Sewage Treatment Plant is the perfect solution for small to large scale projects, where mains drainage is unavailable. From housing developments and other small-scale projects right up to larger commercial applications including caravan parks, leisure facilities, hotels, schools, offices and industrial situations, the plant will serve a population from 30 to 600 PE as a single stream unit. Larger populations can be accommodated with multiple stream plants.
Typical applications include:
- Small and large-scale projects where a population range exceeds 25 PE and mains drainage is unavailable
- Caravan parks
- Leisure facilities
Superior Technical Performance
Designed and tested in accordance with the BS EN 12566-3 standard, the British Water Code of Practice for Flows and Loads as well as being CE approved. The standard configuration offers treatment better than a 20mg/L BOD; 30mg/L SS; 20mg/L NHȝ effluent quality standard with options for 10 or 5mg/L NHȝ effluent quality and improved BOD and SS quality.
With superior technical performance at a competitive price, the SAF provides real value without compromising on quality for the duration of its lifetime. Quick and easy to install for low initial costs. Includes reliable, cost-effective and energy-efficient blowers.
Complete Below Ground Installation
While the SAF is designed to have a minimal visual impact on site location including complete below ground installation, the range is adaptable to provide an above ground treatment solution when needed. The plant offers a quiet, odourless operation with no below ground moving parts.
Quality, Adaptable Design
Premier Tech Aqua has completed hundreds of SAF installation across the world and pioneered the development of package sewage treatment plants. The Conder SAF utilises a proven Submerged Aerated Filter (SAF) technology for optimum performance and dependability. The adaptable design offers the availability of pumped influent or effluent, deeper inverts and high nitrification options.
Conder SAF sewage treatment plants are provided with a mild steel kiosk as standard. This kiosk houses the aeration blowers, timer valves and the electrical control panel.
The electrical control panel provides all the required electrical equipment for the starting, running and monitoring of the plant.
The control panel can be adapted to accommodate other mechanical and electrical devices associated with the plant, for example a final effluent pump station or UV disinfection.
The kiosk is fitted with an alarm beacon as standard and can be provided with telemetry for remote plant monitoring.
Other innovative features include thermostatic cut off controls and air filter monitoring to extend blower life.
- Population - 30
- Diameter – 1.8m
- Length – 4.79m
- Standard Invert 1m (Deeper inverts are available up to 2m)
- Daily Flow – 6,000l
- De-sludge - 120 days

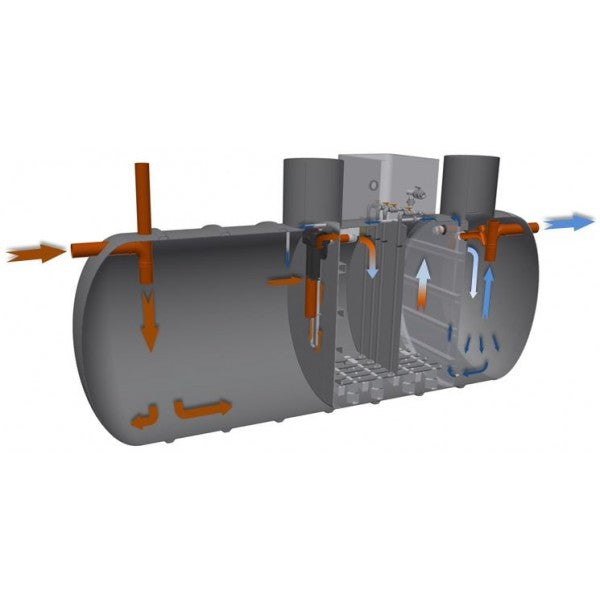

How the Conder SAF sewage treatment plant works
The tank(s) form three treatment stages; primary settlement, biological treatment (biozone) and humus settlement. Flow through all the treatment stages from inlet to outlet occurs through gravity and integral airlift.
Features & Benefits
- Proven SAF technology with reliable performance
- Completely below-ground installation
- Low running cost air-blower
- Easy to install - reduced costs
- Compact uni-tank design with no below ground moving parts
- Deeper inverts available
- Option for pumped influent or effluent
- Effluent Standard: 20mg/l BOD; 30mg/l SS; 20mg/l NH³ (we can achieve 10mg or 5mg NH3 if required)
