F-Line 3000 Litre Rain Backup in a Box System

F-Line

Sale price £2,400.00 Regular price £2,600.00

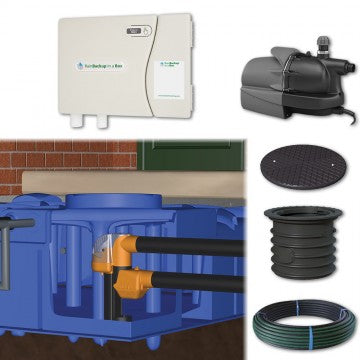

F-Line Flat Tank 3000 litre with WRAS Approved Mains Water Back Up system includes a 3000 litre underground tank, inline filter and overflow kit, Hydroforce Series 3 pump and the accessories needed to deliver clean rainwater to a garden tap and to flush toilets. Some standard external pipework and connectors will be needed but are not included in the kit as the location of the system will determine the amount of pipework required.

Why buy this system?

Our Rainwater Harvesting systems are based on the highest quality, rotationally moulded, one piece tanks, installed without the need for concrete, thereby minimising installation costs and supported by our long term 25 year tank guarantee.

  • Minimum installation depth
  • Easy and quick to install
  • Small excavation pit and little earth excavation preserves your garden
  • Ideal for installation in new or existing properties
  • Can be installed in ground water up to tank shoulder
  • Prefitted filter, Calmed inlet, and overflow siphon
  • Automatic mains top up with the Rain Backup in a Box®

The Rain Backup in a Box® is WRAS Approved (#1306031) and fitted inside the building where the occupiers can see and hear it.

WRAS Approval demonstrates compliance as it is granted directly by representatives of the water suppliers. It is accepted by every water supplier in the UK.

Limitation on Use: Note that the Rain Backup in a Box® is intended for domestic and light garden use. If you run two garden taps with a high-power pump (like the HydroForce, Steel Pumps or Divertron 1100 watt pumps) then the outflow of water is higher than the inflow from the backup device. When the underground storage tank is empty the pump will have no water and its dry-run-protection will turn it off. Some pumps need resetting at the main in this case which is tedious. Most users get around this issue by having mains water taps available alongside the rainwater outlet so that they can switch to mains for garden use when the underground tank is empty. The Rain Backup in a Box® will continue to keep up with demand in the house for toilets and washing machine.

Dimensions:

  •  The control unit is 370mm wide, 270mm high x 100mm deep
  • Float switch cable length 10m minimum

Easy to install

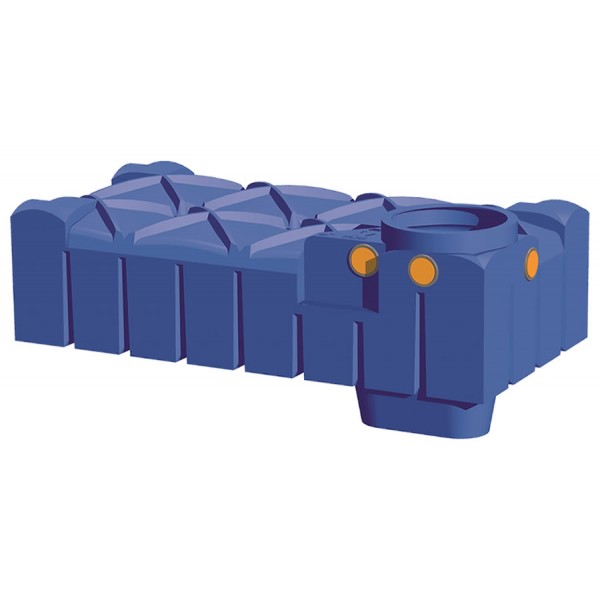

The F-line flat tank can be installed into much higher water tables than a standard round tank. If you don't know what your water table will be like in the winter, you're safer to install a flat tank. The F-Line tanks are flat and the installation depth is 60% less than other rainwater tanks. The excavation can be up to 70% less, meaning little earth excavation, easy handling and less cost for you! The small excavation pit is easily filled in and your garden will look just like it did before.

External HDPE Rainwater Pipe included. It is important to identify a source of a water supply. Untreated rainwater is not for human consumption and so water companies are recommending (and in some cases requiring) that Black and Green HDPE pipe is used for piping rainwater from the tank to the point of use - eg. garden tap. The point of use should be clearly labelled to show that rain water is the source. We include 25mm black and green hdpe pipe and labels with this kit with the option to buy further rolls of pipe.



Technical Details

Size

1500

3000

5000

7500

Weight Kg

80

170

250

310

Length

1200

2400

2960

3340

Width

2400

2400

2220

2310

Overall Height*

1015 - 1415

1015 - 1415

1350 - 1750

1415 - 1815

Ground to Invert**

335 - 735

335 - 735

335 - 735

330 - 730

Invert to Outlet

162

162

162

162



Excavation

Size

1500

3000

5000

7500

Length

1600

2800

3360

3740

Width

2800

2800

2620

2710

Overall Height*

1115 - 1515

1115 - 1515

1450 - 1850

1515 - 1915
