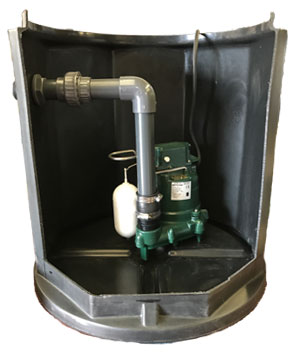

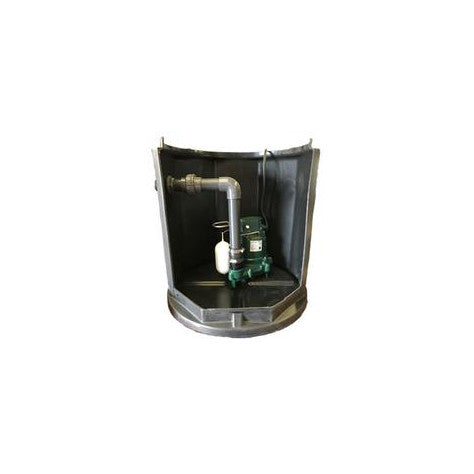

Z100 Compact Sewage Pumping Station


Regular price £725.00

The Zoeller Z100 Compact domestic sewage pumping station is a complete kit for use in areas where gravity flow is not available.The system is used for the transfer of sewage or waste water, all specially designed for easy installation.
All our pumping stations comply to BS EN 12050-1:2001 / BS EN 752-6:1998 standards.

The Z100 Compact is the smallest sewage pumping station in the range suitable for extensions, garden rooms and small applications. The vertical float will prevent any hangups like you get in the standard float on a wire type system.

The standard domestic pumping station consists of the heavy duty cast iron Zoeller 222 (6m lift) submersible sewage pump with 50mm solid handling for peace of mind.

This sewage pumping station can pump up to 80m across to mains

Mini Z100 Compact Sewage Pumping Station Includes:

  • 1 x Zoeller 222 50mm solids sewage pump (up to 6m lift)
  • 1 x 530mm x 585mm HDPE moulded basin
  • 1 x 450mm dia Pedestrian rated cover (double seal)
  • 1 x Soft close Non return valve
  • 1 x Internal 2" PVC (class C) discharge pipe work kit
  • 1 x Seal for incoming and outgoing pipework (4" & 2")
  • 1 x 12 months warranty


  • Free delivery to UK Mainland sites (Scottish Highlands excl., please contact us for a delivery prices).
  • Offloading is the Customers responsibility
  • Delivery dates are subject to change with respect to product availability
